Strainer Filter

  • DIN/3A/SMS Sanitary Stainless Steel Y-type Strainer/Filter with Tri Clamp Ferrule Connection
DIN/3A/SMS Sanitary Stainless Steel Y-type Strainer/Filter with Tri Clamp Ferrule Connection

DIN/3A/SMS Sanitary Stainless Steel Y-type Strainer/Filter with Tri Clamp Ferrule Connection

  • Materials :ss304,ss316L
  • Seal(Gasket):EPDM, SILICON,
  • Type of ends available: Clamp End, Weld end, Union end
  • Description: DIN/3A/SMS Sanitary Stainless Steel Y-type Strainer/Filter with Tri Clamp Ferrule Connection
  • INQUIRY   EMAIL

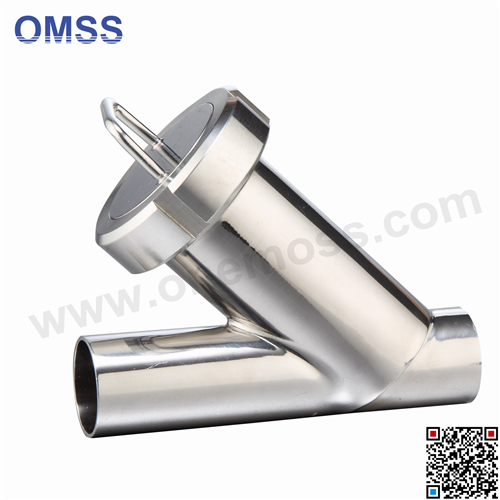

DIN/3A/SMS Sanitary Stainless Steel Y-type Strainer/Filter with Tri Clamp Ferrule Connection


Y type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Y type filter is in the same line. So it is widely used for pipeline. The filter housing and filter elements are seperate. So we can easily clean the filter element .There is non dead angle in Y filter, so we can clean the Y filter easily and completely.

Reasonable structure

Good  filtration and sealing ability

Small pressure loss

Easy maintenance

Max operation pressure:1.0mpa

Max operation temperature: 120 C

Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mmMax flow rate: 15T/H

Connection end: welded, tri-clamped. Threaded, union end

Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#

Size: 1”-4”

Material: SS304, SS316L

Inside Ra: 0.4um

Outside surface Ra:0.8um

Seal: EPDM, silicone,

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
