ONEMO Three-Piece Sanitary Ball Valves with Clamp Weld and Thread Connections

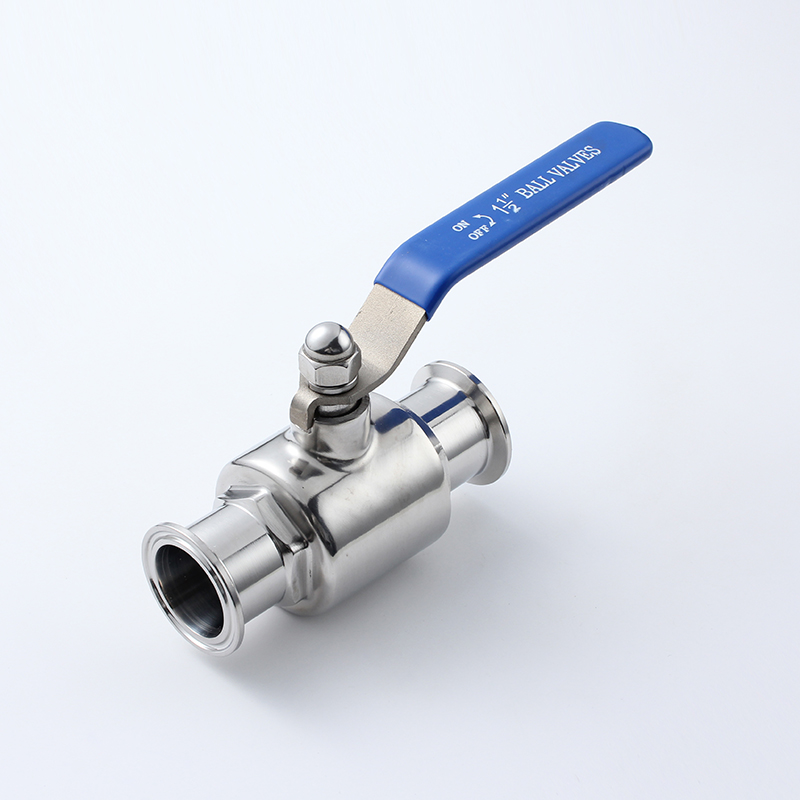

ONEMO Three-Piece Stainless Steel Ball Valves for Sanitary Applications

ONEMO three-piece sanitary ball valves are designed for hygienic processing requiring reliable shut-off and flow control. Constructed from SS304 and SS316L, these valves feature full-port design and are available with clamp end, weld end and threaded connections.

Three-Piece Valve Construction

The three-piece body design allows in-line maintenance without removing the valve from the pipeline. The center section containing the ball and seats can be accessed by removing the two end caps, simplifying seal replacement and inspection.

End Connection Options

Available with clamp ends for quick-disconnect, weld ends for permanent installations, and threaded NPT ends. All configurations feature full-port ball design for minimal pressure drop.

Materials and Standards

Valve bodies investment cast or bar stock SS304 or SS316L. Seat materials PTFE and reinforced PTFE. EN 10204 3.1 certification provided.
